an-GlauDrain
A non-valved drainage device for refractory glaucoma cases
The an-GlauDrain is specifically designed for the use in veterinary ophthalmology, with a soft base plate and being flexible enough to adjust to the different globe sizes (radiuses).
As the an-GlauDrain is foldable, it allows a comfortable placement in the subconjunctival pocket. The base is made of a hydrophobic and highly bio-compatible acrylate, and the connected tube is made of silicone, certified for long-term implantation. This innovative design allows the aqueous humor to percolate out of the eye underneath the conjunctiva which lowers the intraocular pressure.
- Description
Description
Valveless — Foldable — Soft
• The ring structure on both sides of the base plate of the an GlauDrain prevents the tissue from lying flat on the base plate
• The breaks found intermittently in the rings facilitate the outflow of aqueous humor
• The base plate is foldable for easier placement
• The soft plate adjusts easy to the curvature of the globe
• Steam sterilized in BSS.
MATERIAL USAGE |
|
|---|---|
Base Plate: |
Hydrophobic Acrylate ( for long term implantation) |
Tube: |
Medical Grade Silicone ( for long term implantation) |

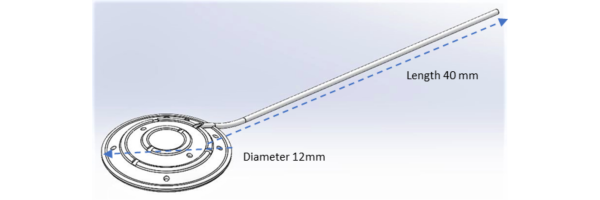

DIMENSIONS |
|
Base Plate: |
12mm Diameter |
Tube: |
Inner Diameter 0.30 mm Outer Diameter 0.60 mm 40 mm length |
