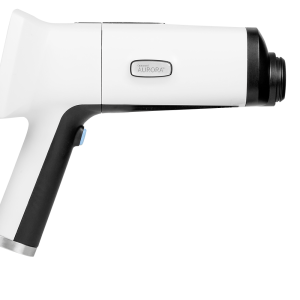

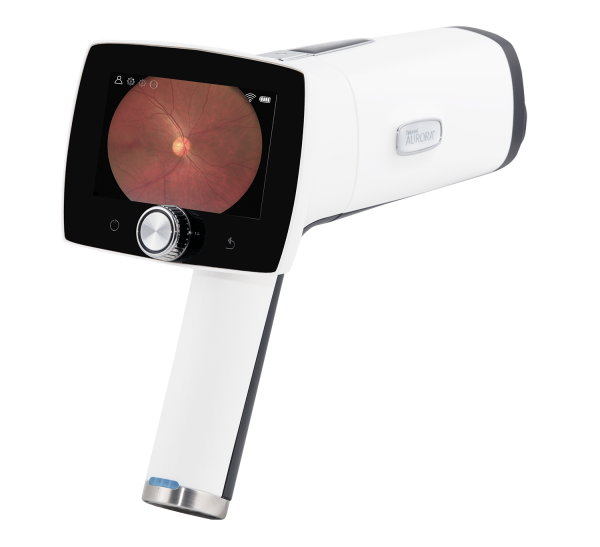

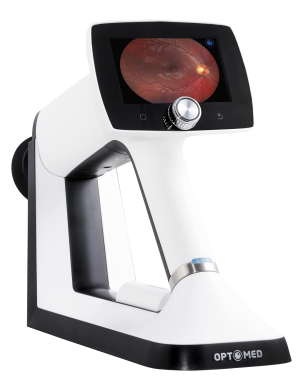

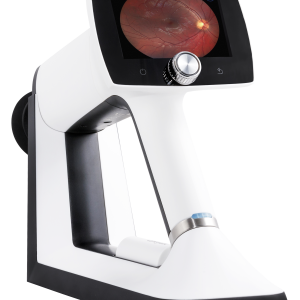

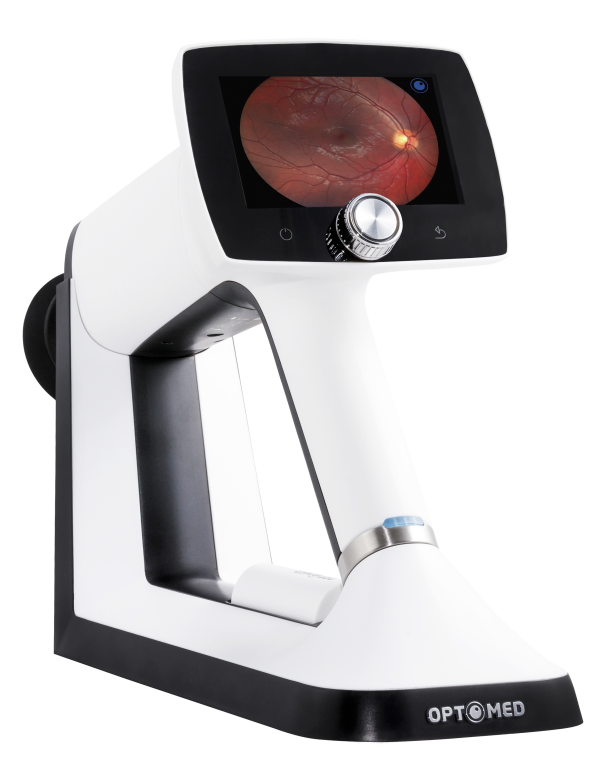

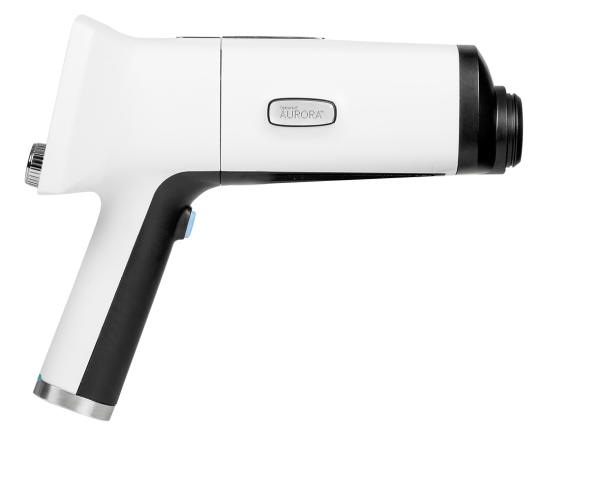

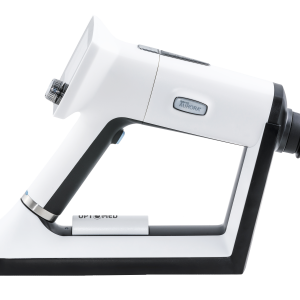

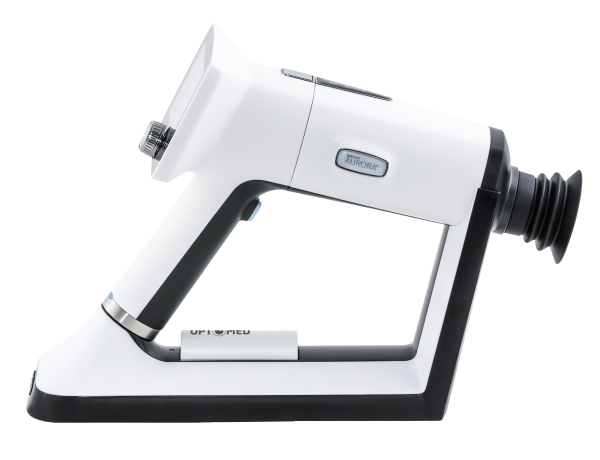

Aurora IQ Fundus Camera

Smartscope Pro Fundus Camera

  • Non-mydriatic handheld fundus camera with 50 degrees field of view
  • Fulfills ISO 10940 fundus camera standard requirements
  • Retinal and eye surface imaging

Image Quality

  • 50 degrees field of view combined with non-mydriatic operation allow a detailed examination and ease of use in various use cases.
  • New high contrast optical design helps to detect small early phase retinal changes.

Intelligent Features

  • Autofocus and autoexposure allow quick usage of the camera without any setting modifications in various use cases.
  • Integrated image quality analysis guides first time users to acquire successful images and therefore minimizes training time.
  • Pin code protection can be used for ensuring data safety.

Connectivity

  • WLAN (Wi-Fi) and USB connections for image transfer and various ways of handling image data are supported by the camera.

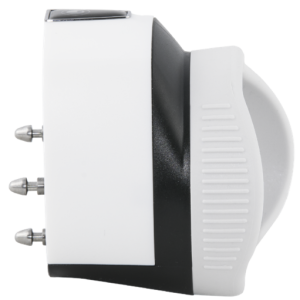

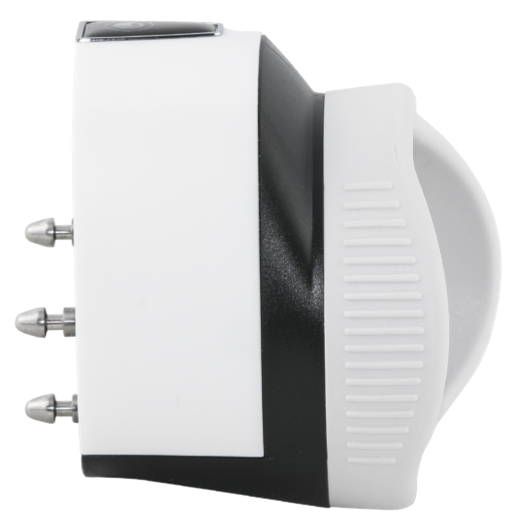

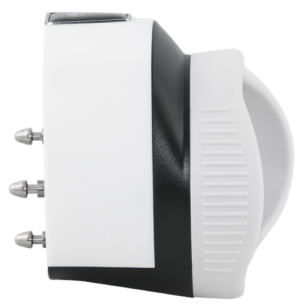

Anterior Module Attachment (Included in the Aurora IQ “Full Set” Configuration):

  • Color and Cobalt Blue fluorescein modes
  • Adjustable illumination levels
  • Autofocus
  • USB and WLAN (Wi-Fi) data transfer
SKU: N/A Categories: , Tag:
Add to wishlist

Description

Type:                                          Non-mydriatic digital fundus camera
Field of View:                           50 degrees (total FOV 50×40)
Camera Sensor Resolution:   5 Mpix
Optical Resolution:                 >60 lp/mm (ISO10940:2009)
Fixation Targets:                      9 internal fixation targets for peripheral imaging
Focus Range:                            Autofocus, -20D to +20D
Minimum Pupil Size:              3.1 mm
Image Format:                         JPEG
Video Format:                          MPEG-4
Display: TFT-LCD:                    4”, 800×480
Memory:                                    16 GB
Battery:                                      Rechargeable 3.63V/2600mAh Li-ion Battery
Connectivity:                            WLAN (Wi-Fi), USB
Type of Photography:             Color, Red-free, IR
Dimensions and Weight:
Aurora camera:                     122(w) x 202(h) x 98(l) mm, 526g
Aurora retinal module:        68(w) x 74(h) x160(l) mm, 327g
Aurora anterior module:     71(w) x 80(h) x 79(l) mm, 105g
Warranty:                                  2 years, excluding batteries

Additional information

Configuration

Aurora IQ Full Set (includes both Anterior and Retinal Modules), Aurora IQ Retinal Set (includes Retinal Module)
