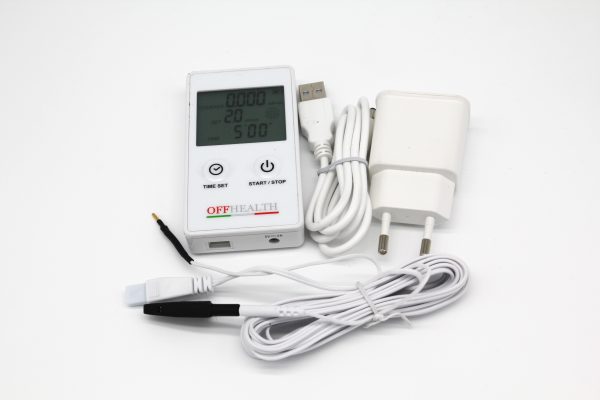

K-IONO Generator for Iontophoresis

Reusable iontophoresis generator delivering a fixed dose of 10 mA.min.

Offers a user-selectable treatment protocol ranging from 2.5 to 10 minutes (treatment duration automatically adjusts corresponding to the user-selected mild electrical current setting).

Electrical current selectable from 1 to 4 mA. (i.e. 1mA x 10min, to 4mA x 2.5min = 10mA.min)

The generator, in combination with the IONTOFOR-VET electrode, allows for the transepithelial delivery of Intravenous (I.V.) drug products (such as riboflavin for corneal cross-linking) into the corneal stroma via iontophoresis.

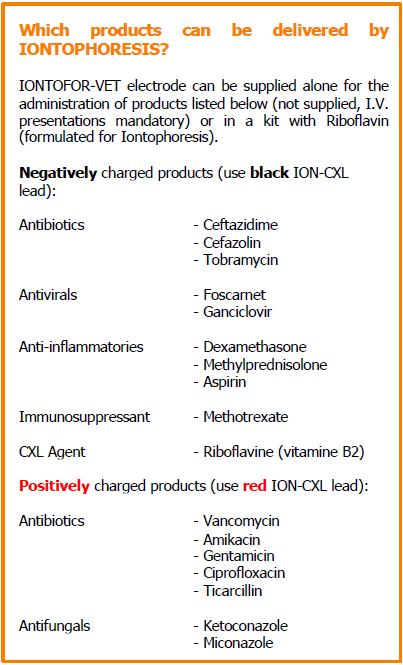

IONTOPHORESIS is a process of applying a low intensity electrical current on a tissue to increases the penetration of a charged substance. This applies not only to Riboflavin used in corneal cross-linking, but also several other charged drug products. Iontophoresis significantly reduces the drug delivery time compared to topical/drop applications and provides a consistent medication dose concentration through the cornea.

Click here to watch Iontophoresis procedure video demonstration

SKU: IO2196 Categories: ,
