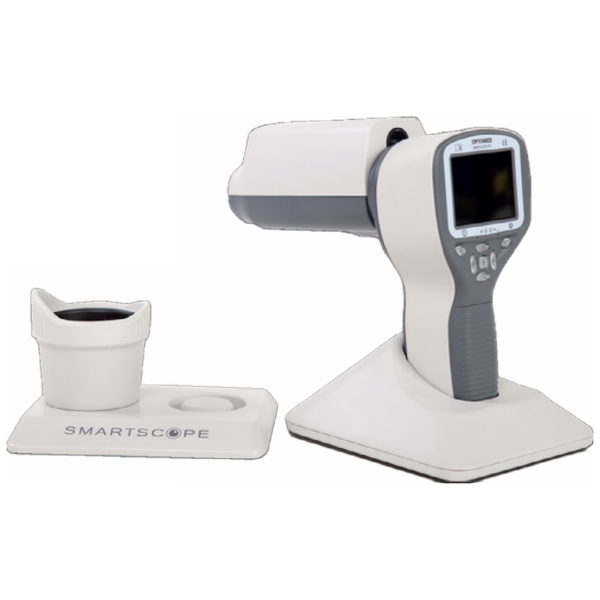

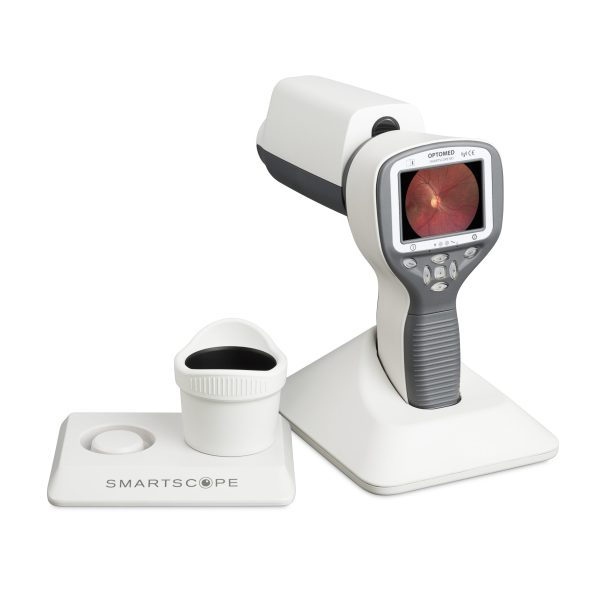

Smartscope Pro Fundus Camera
High-quality digital fundus imaging.
Including advanced image transfer using Wi-Fi, Smartscope PRO is a real breakthrough in digital hand-held fundus imaging, providing state of the art convenience for your practice.
Camera
– Medical fundus camera fulfilling ISO 10940
– Handheld, lightweight, interchangeable optics
– White light and infrared light
– Wi-Fi for image transfer to PC or mobile device
– Option: Data Management software with full DICOM and PACS compliance

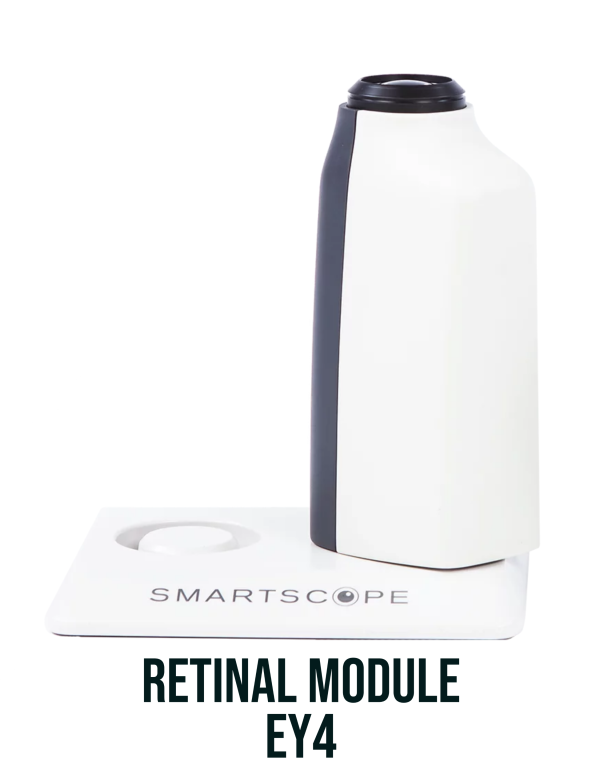

Retinal Module EY4
– White light and infrared: focusing with IF and taking pictures with white light or infrared
– Non mydriatric eye focus screening
– 9 internal fixation targets for peripheral imaging

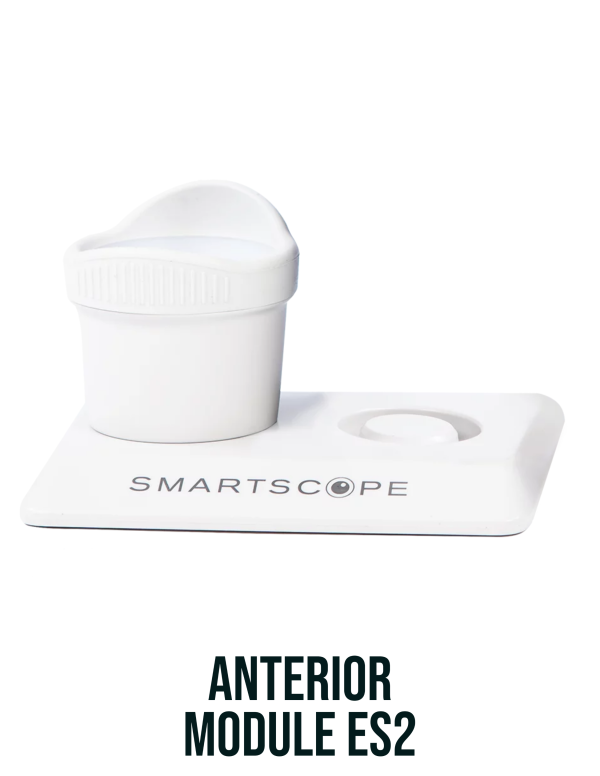

Anterior Module ES2
– High resolution picture of the anterior segment
– Cobalt blue LEDs allow fluorescent imaging
– 6 x digital zoom

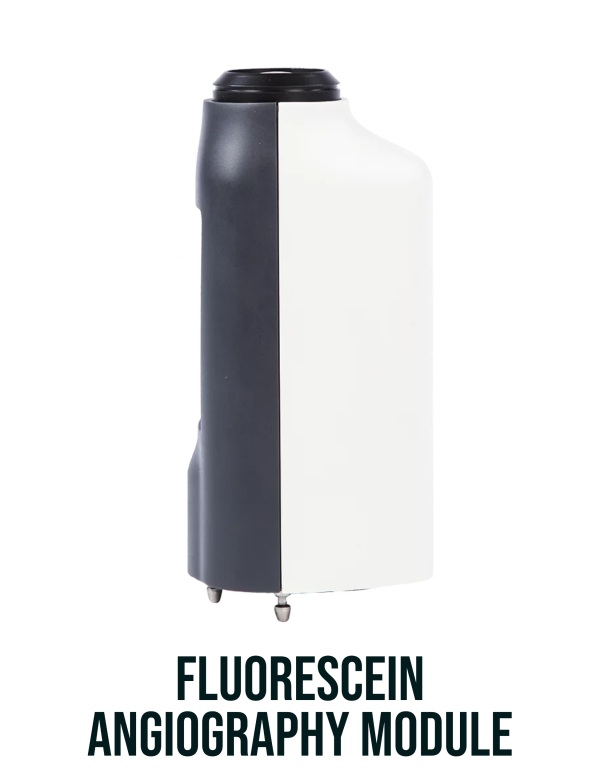

Fluorescein Angiography Module
– Hand held Fluorescein Angiograms in high quality
– 40° field of view
– 9 internal fixation targets
– Fast image capture ability
– Detailed view of the entire fluorescein dye circulation dynamics
- Description
Description
Technical Specifications
Camera
Type: Non mydriatic digital fundus camera
Type of photography: Color, Red free, IR
Camera sensor resolution: 5 Mpix
Image and video format: JPEG, DICOM; MPEG 4/MPEG 1
Display: 2.4″ TFT LCD
Memory: 8GB
Power supply: Rechargeable Ni MH Battery
Connectivity: WiFi , USB
Image viewer and archive: Optomed Workstation software with DICOM
Dimensions: 82.30 (w) x 166.50 (h) x 66.50 (d) mm, 400 g
Retinal Module EY4
Type: Non mydriatic digital fundus imaging
Field of view: 40 degrees
Optical resolution: > 60 lp /mm (ISO 10940:
Fixation targets: 9 internal fixation targets for peripheral imaging (total FOV up to 70 x 52)
Focus range: Autofocus, 20D to +20D
Minimum pupil size: 3.5 mm
Dimensions: 67 (w) x 73 (h) x 160 (d) mm, 300 g
Anterior Module ES2
Light source: White and cobalt blue LEDs
Focus: Auto/manual focus
Zoom: 6 x digital zoom
Image resolution: 2560 x 1920 Pixels
Dimensions: 79 (h) x 70 (d) mm / 92 g
Fluorescein Angiography Module
FOV: 40 degrees Field of view
Fixation targets: 9 internal fixation targets for peripheral imaging (total FOV 70 * 52 degrees)
Timer: Timer display for effective data recording and analyzing
Focus range: Autofocus, 20D to +20D
Minimum pupil size: 4.5mm
Optical resolution: > 60 lp /mm (ISO 10940:
Dimensions: 67 (w) x 73 (h) x 160 (d) mm, 400g[/vc_column_text][/vc_column][/vc_row]
